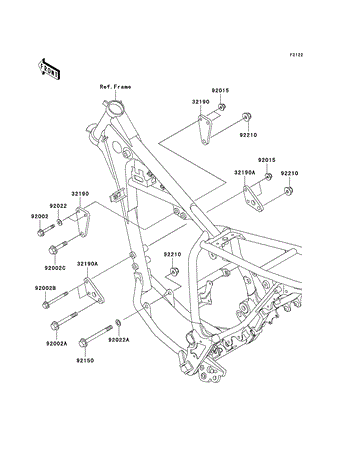

2003 Super Sherpa - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
32190
32190
32190A
32190A
92002
92002A
92002B
92002C
92015
92015
92022
92022A
92150
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,HEAD 32190 32190-1099 2
BRACKET-ENGINE,FR 32190A 32190-1100 2
BOLT 92002 92002-1221 2
BOLT,10X90 92002A 92002-1674 1
BOLT,FLANGED,8X90 92002B 92002-1849 2
BOLT,FLANGED,10X53 92002C 92002-1936 1
NUT,8MM 92015 92015-1432 4
WASHER,8.5X20X1.6 92022 92022-1561 2
WASHER,11.5X20.5X1.6 92022A 92022-1768 1
BOLT,FLANGED,10X120 92150 92150-1642 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 3
